plot_loadings()

Plot the loading contribution between variables and principal components over time.

Usage

Source

plot_loadings(
    pca,
    exp=1,
    merge_blocks=1,
)

The absolute loadings are normalized to [0-1] each block-variable pair. Then, in a pannel for each original variable, a plot of the time serie of loadings for each principal component is plotted. This shows how a variable contributed to each PC over time. A high contribution to the first PCs indicates high variance explanatory power.

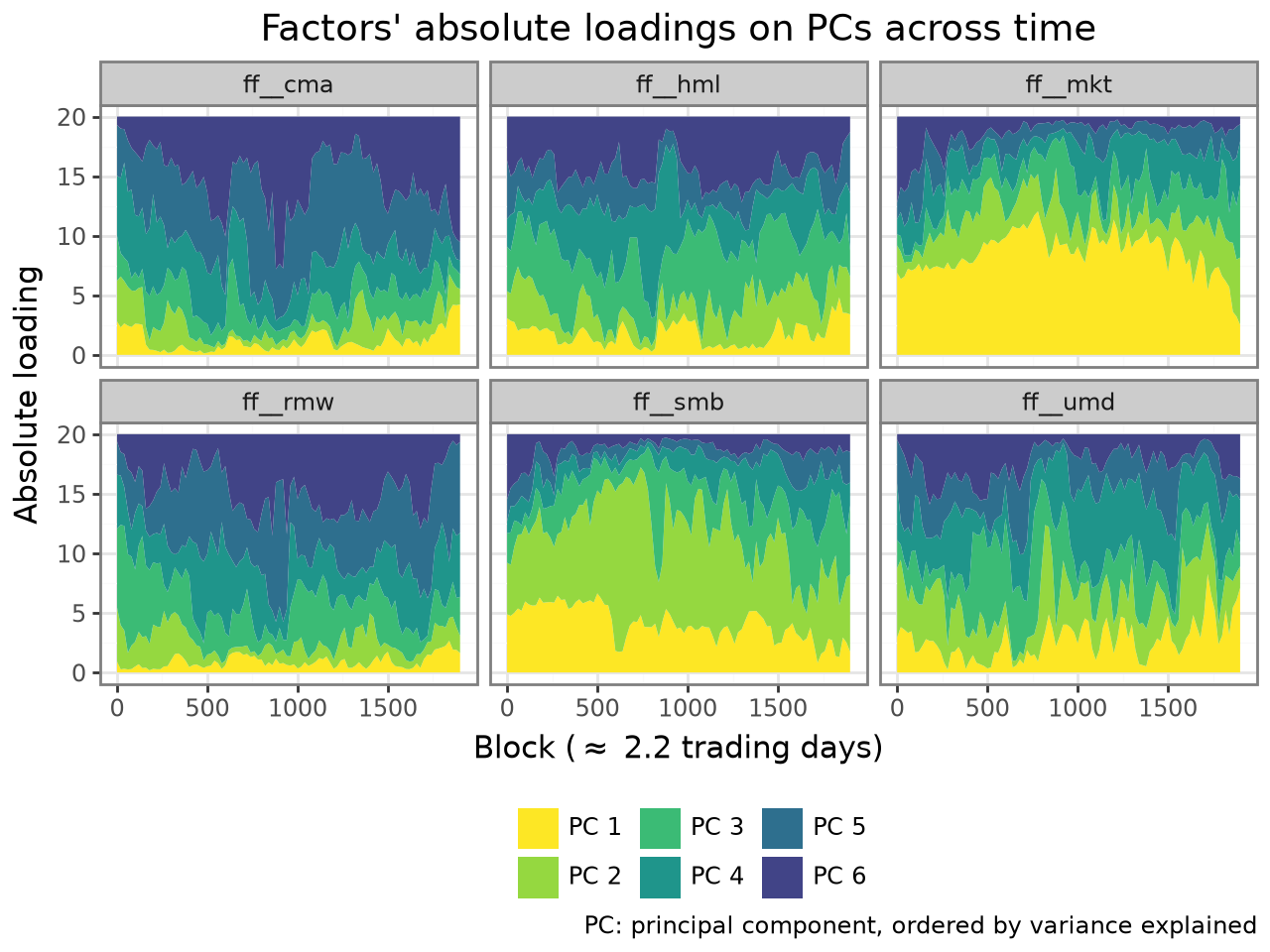

Example with high-frequency factor zoo data from Aleti 2022:

Parameters

pca: PCAHighFreqResult

The result of pca_high_freq.

exp: float = 1

Exponent applied to the absolute loadings before normalization. Higher values emphasize the dominant loading components.

merge_blocks: int = 1

Number of blocks to merge (sum) in a single observation for plotting. This is useful to reduce the number of points in the plot and improve visibility.

Returns

ggplot

A [ggplot][plotnine.ggplot] object. Print the object to show the plot,

or save it with plotnine.ggsave. Modifications can be made by adding

plotnine calls to the result: plot_loadings(...) + plotnine.*(...).
